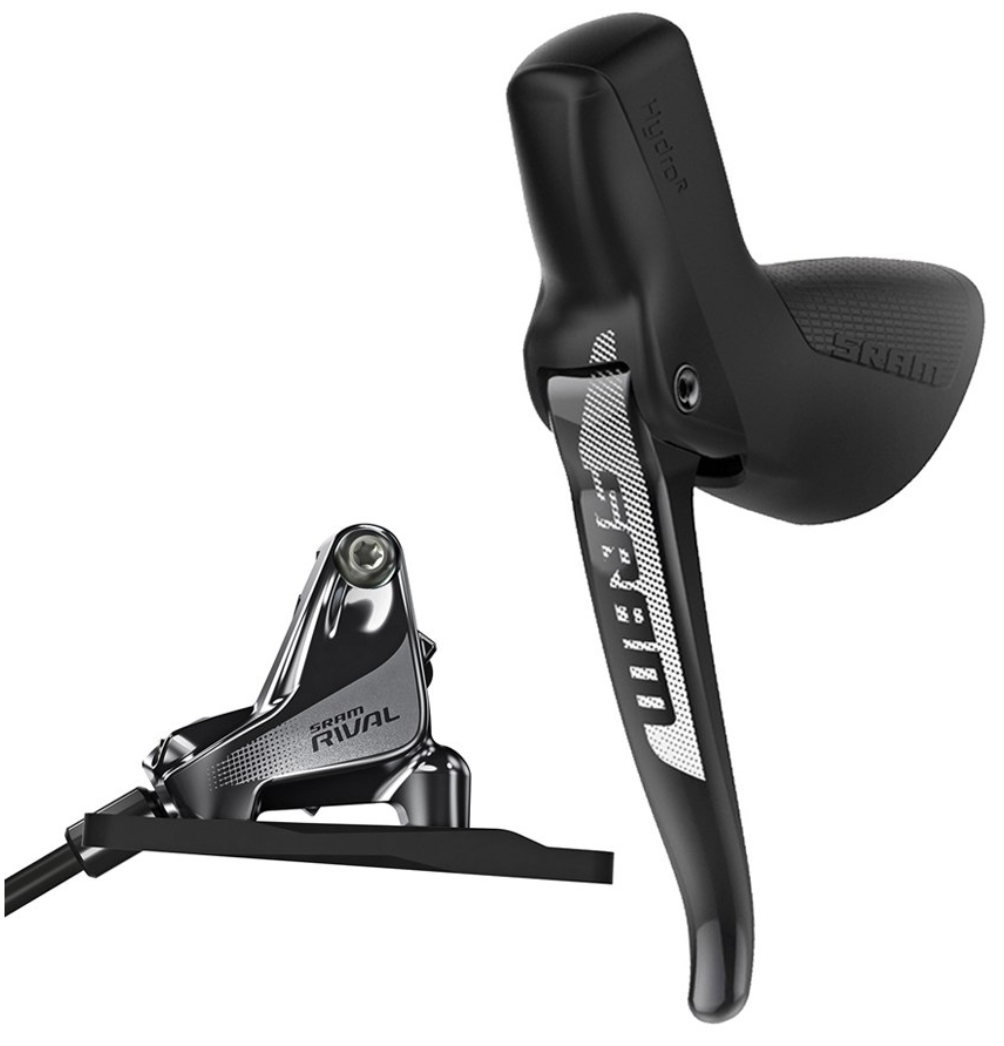

SRAM Rival 1 HRD Hydraulic Disc Brake – Left / Front – Flat Mount – 950mm

SRAM Rival 1 HRD Hydraulic Disc Brake Overview

The SRAM Rival 1 HRD Hydraulic Disc Brake combines an ergonomic drop-bar brake lever with a Flat Mount front caliper and 950mm hydraulic hose.

This exact version is the left/front brake and has no shifting function. Therefore, it works particularly well as the left-hand control in SRAM 1x road, gravel and cyclocross drivetrains.

SRAM’s HydroR design provides strong stopping power with controlled modulation and relatively low hand effort. In addition, Reach Adjust lets the rider set the lever position to suit their hand size and preferred riding position.

Brake rotor/disc not included.

Features

• Genuine SRAM Rival 1 HRD component
• Left-hand brake lever
• Front hydraulic disc brake
• 950mm hydraulic hose
• Flat Mount front caliper
• No shifting function
• Drop-bar lever design
• Forged aluminium lever blade
• Forged aluminium brake caliper
• 2-piston hydraulic caliper
• Steel-backed organic brake pads
• DOT 5.1 brake fluid
• Individual Reach Adjust
• No contact-point adjustment
• Fully sealed hydraulic system
• Easy bleed access
• Suitable for road, gravel and cyclocross use
• Brake rotor/disc not included

Braking Performance

The Rival 1 HRD system delivers strong hydraulic braking while keeping lever effort relatively low. Its two-piston caliper provides controlled braking for road, gravel and cyclocross riding.

Meanwhile, the hydraulic system gives the rider useful modulation. As a result, braking force can be applied progressively rather than feeling abrupt.

HydroR Ergonomics

SRAM designed the HydroR lever around improved hand comfort and control on drop handlebars. The lever and hood shape provide a secure position from both the hoods and drops.

In addition, the lever uses Reach Adjust. Therefore, riders can position the lever closer to or further from the handlebar to suit different hand sizes.

DOT 5.1™

The Rival 1 HRD brake uses DOT 5.1 hydraulic fluid.

DOT 5.1 provides strong resistance to high temperatures. As a result, the brake can maintain more consistent performance during longer or harder braking periods.

Specifications

• Brand: SRAM
• Series: Rival 1
• Model: Rival 1 HRD
• Model ID: DB-RIV-A1
• Product Type: Hydraulic disc brake with drop-bar lever
• Lever Position: Left
• Brake Position: Front
• Shifting Function: None
• Brake Type: Hydraulic
• Caliper Mount: Flat Mount
• Hose Length: 950mm
• Caliper: 2-piston
• Lever Blade Material: Forged aluminium
• Caliper Material: Forged aluminium
• Pad Type: Steel-backed organic
• Hydraulic Fluid: DOT 5.1
• Reach Adjustment: Yes, tooled
• Contact Point Adjustment: No
• Application: Road / Gravel / Cyclocross
• Rotor Included: No
• Colour: Black
• Condition: New

Compatibility

The SRAM Rival 1 HRD Hydraulic Disc Brake is designed for compatible drop-bar bikes using a Flat Mount front brake fitting.

Suitable applications include:

• Road bikes
• Gravel bikes
• Cyclocross bikes
• SRAM 1x road drivetrains
• Compatible Flat Mount forks
• Suitable SRAM road brake rotors

This exact unit is the left/front version with a 950mm hose.

Scope of Delivery

• 1 x SRAM Rival 1 HRD left brake lever
• 1 x SRAM front Flat Mount hydraulic brake caliper
• 1 x 950mm hydraulic hose
• Brake pads installed / included

Brake rotor/disc not included.
