SRAM DB8 4 Piston Mountain bike Front Brake 900mm

Description

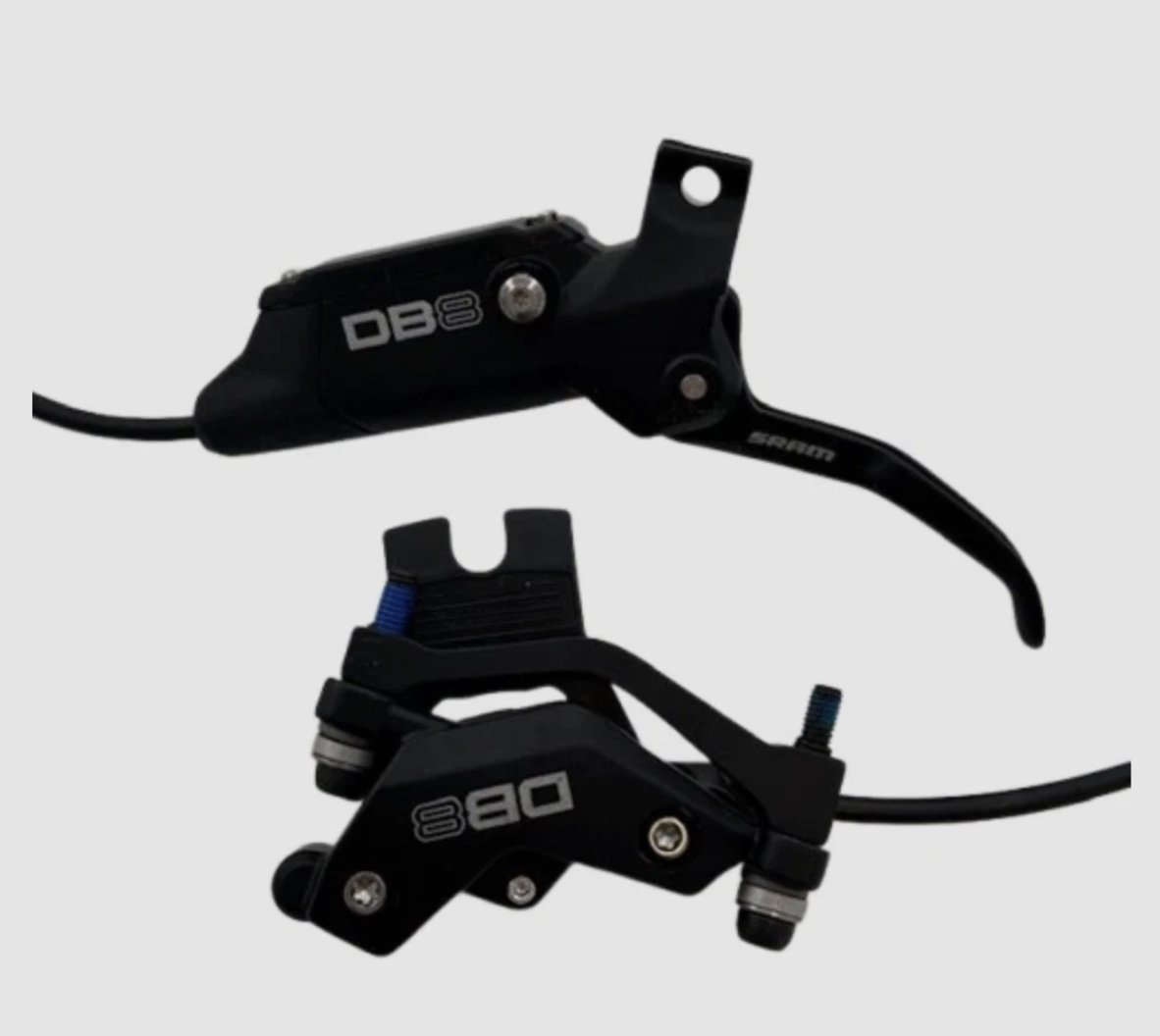

SRAM DB8 4 Piston Brake Overview

The SRAM DB8 4 Piston Brake is a powerful hydraulic brake for mountain bikes and e-MTBs. This unit is brand new, unused OEM stock with a 900mm hose. It comes without original packaging, and the bar clamp is not included.

The FlipFlop lever can mount on either side of the handlebar. Therefore, the brake can work as either a front or rear brake where the 900mm hose is long enough for the bike’s routing.

SRAM designed the DB8 for riders who want strong braking with simple maintenance. In addition, it uses mineral oil instead of DOT fluid, which makes routine servicing more straightforward.

---

Product Features

• Powerful 4-piston hydraulic braking
• 900mm hydraulic hose
• Suitable for front or rear use
• SRAM mineral oil system
• MTB and e-MTB compatible
• Code-inspired caliper architecture
• Post Mount caliper
• FlipFlop lever for left or right mounting
• Tooled reach adjustment
• Steel-backed organic brake pads
• Compatible with SRAM Code brake pads
• Diffusion Black finish
• Designed for simple servicing

---

Performance and Use

The DB8 provides strong braking for technical trails, steep descents and heavier e-MTBs.

Its four-piston caliper creates stable braking force under higher loads. As a result, riders get dependable stopping power when terrain becomes rough or steep.

In addition, SRAM based the caliper architecture on the proven Code platform. The DB8 also uses the same pad format as Code brakes. Therefore, replacement pads are easy to source.

The mineral oil system also keeps maintenance simple. Meanwhile, the two-finger lever gives the rider comfortable control and adjustable reach.

Because the lever uses SRAM’s FlipFlop design, it can mount on either side of the handlebar. This makes the brake suitable for front or rear installation, provided the hose length suits the bike.

---

Specifications

• Brand: SRAM
• Model: DB8 A1
• Brake Type: Hydraulic disc brake
• Application: MTB / E-MTB
• Hose Length: 900mm
• Caliper: 4-piston
• Caliper Mount: Post Mount
• Caliper Body: Forged aluminium
• Piston Material: Phenolic
• Lever Blade: Stamped aluminium
• Lever Configuration: FlipFlop
• Reach Adjustment: Tooled
• Contact Point Adjustment: No
• Brake Fluid: SRAM Mineral Oil
• Pad Type: Steel-backed organic
• Code Brake Pad Compatible: Yes
• Colour: Diffusion Black

---

Compatibility

• Suitable for front or rear installation
• 900mm hose must be long enough for the intended routing
• Compatible with MTB and e-MTB applications
• Post Mount brake caliper
• Compatible with SRAM Code brake pads
• FlipFlop lever can mount on either side of the handlebar
• Requires a compatible SRAM rotor and mounting setup

For most bikes, 900mm is well suited to front-brake use. However, it can also work at the rear on frames with sufficiently short hose routing.

---

Scope of Delivery

• 1 x SRAM DB8 hydraulic brake with 900mm hose

Bar clamp not included.

---

Condition

Supplied without original packaging
Brand new and unused OEM stock
