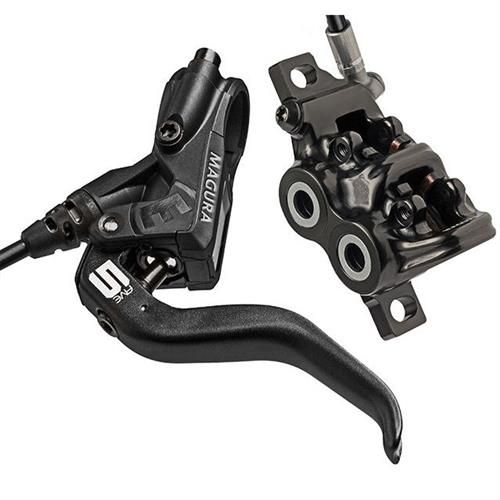

Magura MT5 Front Brake 900mm – 4 Piston

Description

Magura MT5 Front Brake Overview

The Magura MT5 Front Brake delivers powerful 4-piston braking for gravity, enduro and downhill riding. This is brand new, unused OE stock with a 900mm hydraulic hose. It is supplied without original packaging. The system is fully bled and ready to fit, while the barb and olive are not included.

The Flip-Flop master allows the brake lever to be mounted on either side of the handlebar. Therefore, the brake can be configured for front or rear use where the hose length suits the bike. This listing is supplied with the shorter 900mm hose commonly used for front-brake installations.

The MT5 takes much of its braking concept from the higher-end MT7. Its one-piece 4-piston design provides strong braking force while still giving the rider fine control. As a result, it works particularly well on steep trails and demanding descents.

Magura also draws on its motorsport braking experience in the MT5. The combination of four pistons, a rigid aluminium caliper and an ergonomic aluminium lever helps provide the stability and modulation needed when braking hard on technical terrain.

Product Features

• Powerful 4-piston hydraulic braking
• 900mm hydraulic hose
• Designed for gravity, enduro and downhill riding
• Carbotecture brake master

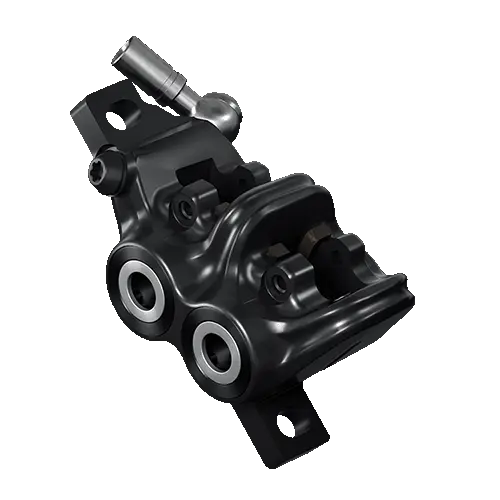

• Forged aluminium 4-piston caliper

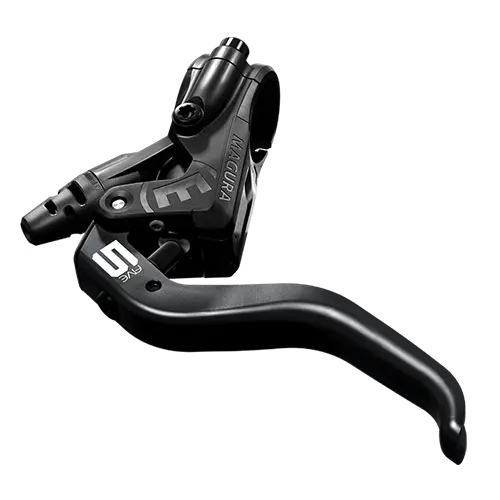

• Ergonomic aluminium lever blade
• Flip-Flop lever design
• Reach adjustment
• Post Mount caliper
• MAGURA Royal Blood mineral oil
• Fully bled and ready to fit
• MagnetiXchange pad retention system
• Easy Bleed Technology
• Rotatable hose connection at the caliper

Magura MT5 Front Brake Performance & Use

The MT5 is built for riders who need strong braking on steep and technical terrain.
Its four pistons apply force across the brake pads with high stability. Therefore, the brake can produce strong stopping power without sacrificing control.
At the same time, the rigid one-piece aluminium caliper helps maintain a consistent lever feel. This is especially useful during repeated braking on long descents.

The ergonomic aluminium lever also helps the rider control braking force accurately. As a result, the MT5 offers good modulation when grip levels change or when precise braking is needed through technical sections.
The Carbotecture master keeps weight down while maintaining strength. In addition, the Flip-Flop design allows the master to be installed on either side of the handlebar.

Shift Mix compatible – allows compatible SRAM trigger shifters to be mounted to the MAGURA brake clamp

Key Features

• Strong braking for steep and technical terrain
• Four-piston design for improved control and stability
• Proven gravity-focused braking platform
• Fine modulation for technical riding
• Lightweight Carbotecture master
• Durable aluminium caliper
• Adjustable lever reach
• Easy pad servicing
• Fully bled system reduces installation work

Specifications

• Brand: Magura
• Model: MT5
• Brake Type: Hydraulic disc brake
• Application: Gravity
• Hose Length: 900mm
• Caliper: 4-piston
• Caliper Mount: Post Mount
• Master Material: Carbotecture
• Lever Blade Material: Aluminium
• Caliper Material: Aluminium
• Brake Fluid: MAGURA Royal Blood mineral oil
• Lever Configuration: Flip-Flop
• Reach Adjustment: Yes
• Easy Bleed Technology: Yes
• MagnetiXchange: Yes
• Shift Mix: Compatible with SRAM Trigger mounting
• Hose Connection: Rotatable banjo / RHR
• Original Stock Weight: 380g
• Colour: Black
• System Status: Fully bled and ready to fit

Compatibility

• Suitable for mountain bike gravity applications
• Well suited to enduro and downhill bikes
• Post Mount brake caliper
• Can be fitted to suitable IS mounts with the correct adapter
• Compatible with appropriate MAGURA brake rotors
• Compatible with MAGURA Storm and Storm SL rotor systems
• Designed around 2.0mm MAGURA rotor thickness
• Flip-Flop lever can be mounted on either side of the handlebar
• Check rotor size, frame or fork mount and adapter requirements before installation

The supplied 900mm hose is primarily suited to front-brake installations. However, actual hose requirements depend on frame size, routing and cockpit setup.

Scope of Delivery

• 1 x Magura MT5 hydraulic brake with 900mm hose

Barb and olive are not included.

Condition

• Brand new and unused OE stock
• Supplied without original packaging

Why Choose This Product

• Strong 4-piston braking for demanding terrain
• Excellent control on steep descents
• Good modulation when grip conditions change
• Proven design influenced by the MT7
• Flip-Flop lever gives greater installation flexibility
• Fully bled system saves setup time
• Durable materials suited to hard MTB use
• Strong performance at an accessible price point
