SKU: XTM8120 Categories: Cranks, Drivetrain Parts

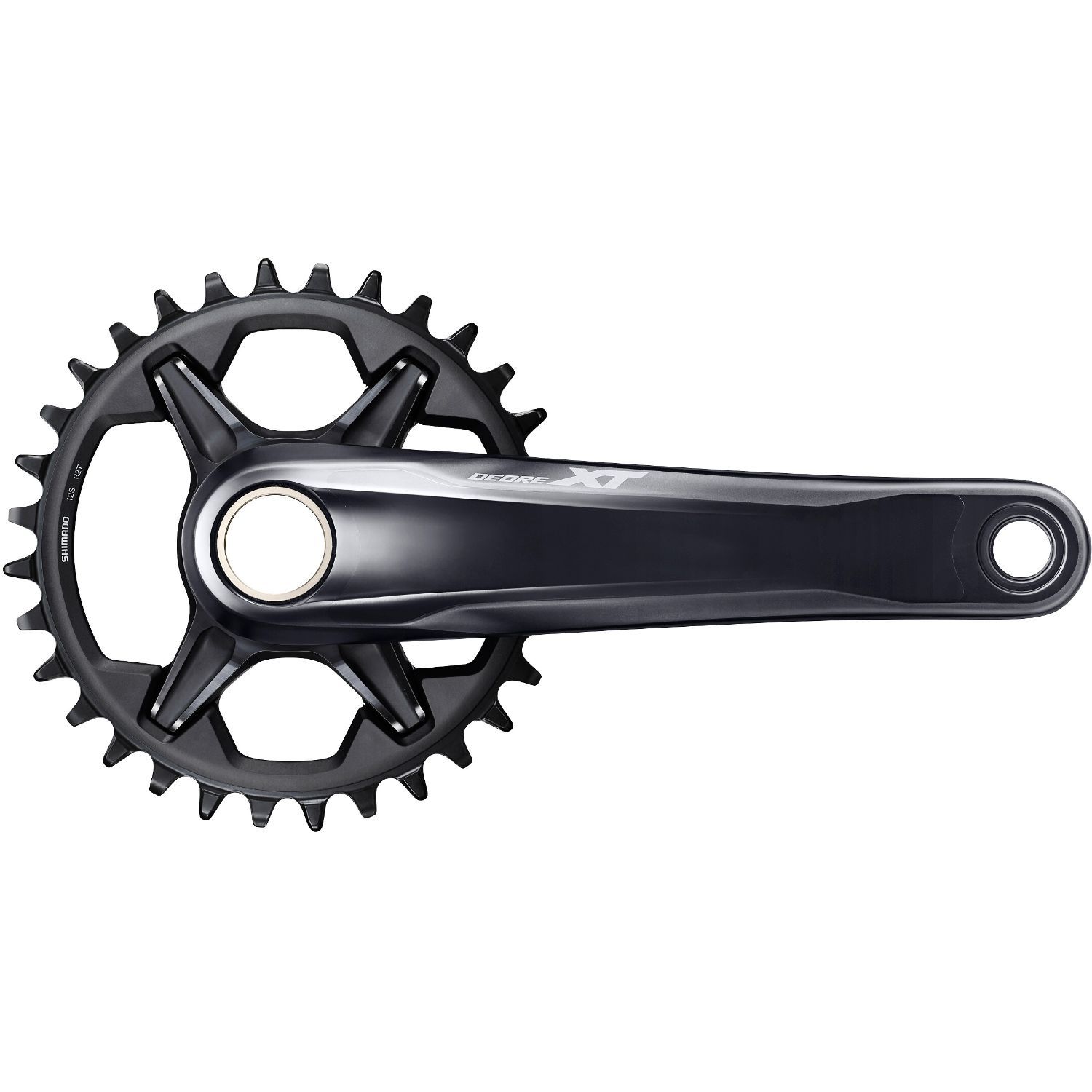

Shimano XT M8120 Boost Crankset With 30T Chainring – 12 Speed

Shimano XT M8120 Boost Crankset with 175mm arms and 30T direct-mount chainring. Brand new, unused OE stock supplied without original packaging. Designed for 1×12-speed MTB drivetrains with 148mm Boost spacing and a 55mm chainline.

Original price was: £229.98.Current price is: £69.99.

Description

Shimano XT M8120 Boost Crankset Overview

The Shimano XT M8120 Boost Crankset combines 175mm crank arms with a 30T direct-mount chainring for 1×12-speed mountain bike drivetrains. This is brand new, unused OE stock supplied without original packaging.

Designed specifically around 148mm Boost rear spacing, the FC-M8120-1 uses a 55mm chainline and 178mm Q-factor. Therefore, it provides the extra clearance required by compatible Boost mountain bike frames.

Shimano uses hollow-forged crank construction to balance stiffness with low weight. As a result, the crankset transfers pedalling power efficiently while remaining suitable for aggressive trail riding.

The included 30T direct-mount chainring also uses Shimano’s MTB-specific tooth profile. Consequently, it improves chain engagement and retention when riding over rough or technical terrain.

Product Features

Shimano Deore XT FC-M8120-1
175mm crank arms
30T direct-mount chainring
Designed for 1×12-speed MTB drivetrains
148mm Boost application
55mm chainline
178mm Q-factor
HOLLOWTECH II construction
Hollow-forged aluminium crank arms
Shimano MTB tooth profile for improved chain retention
Compatible with Shimano HG 12-speed chains
Rigid and lightweight design for aggressive trail riding

Performance & Design

The hollow crank arms provide high rigidity without unnecessary weight. Therefore, more of the rider’s effort transfers directly through the drivetrain during climbs and hard accelerations.

In addition, the direct-mount chainring system keeps the construction simple and stiff. It also allows the chainring to be replaced with another compatible Shimano direct-mount size when gearing requirements change.

Meanwhile, the 30T chainring provides a useful climbing-oriented ratio for steep and technical trails. Combined with Shimano’s chain-retention tooth profile, it helps keep the drivetrain secure when the terrain becomes rough.

Specifications

Brand: Shimano
Series: Deore XT
Model: FC-M8120-1
Crank Length: 175mm
Chainring: 30T
Drivetrain: 1×12 speed
Rear O.L.D.: 148mm Boost
Chainline: 55mm
Q-Factor: 178mm
Chainring Mount: Direct mount
Compatible Chain: Shimano HG 12-speed
Crank Arm Material: Aluminium
Crank Arm Finish: Anodised
Crank Axle Material: Steel
Technology: HOLLOWTECH II
Bottom Bracket Type: Outboard
Compatible Threaded Shell Width: 68 / 73mm
Recommended Threaded BB: Shimano BB-MT801
Recommended Press-Fit BB: Shimano BB-MT800-PA
Colour: Shimano series dark grey

Compatibility

Shimano 1×12-speed MTB drivetrains
Frames designed for 148mm Boost rear spacing
Shimano HG 12-speed chains
HOLLOWTECH II-compatible bottom brackets
Shimano direct-mount MTB chainrings

Please confirm that your frame requires a 55mm chainline and 148mm Boost configuration before ordering.

Scope of Delivery

1 x Shimano XT FC-M8120-1 175mm crankset
1 x Shimano XT 30T direct-mount chainring

Condition

Brand new and unused OE stock
Supplied without original packaging
