Shimano STEPS BT-EN806 630Wh E-Bike Battery – Integrated Downtube 36V (OEM)

Description

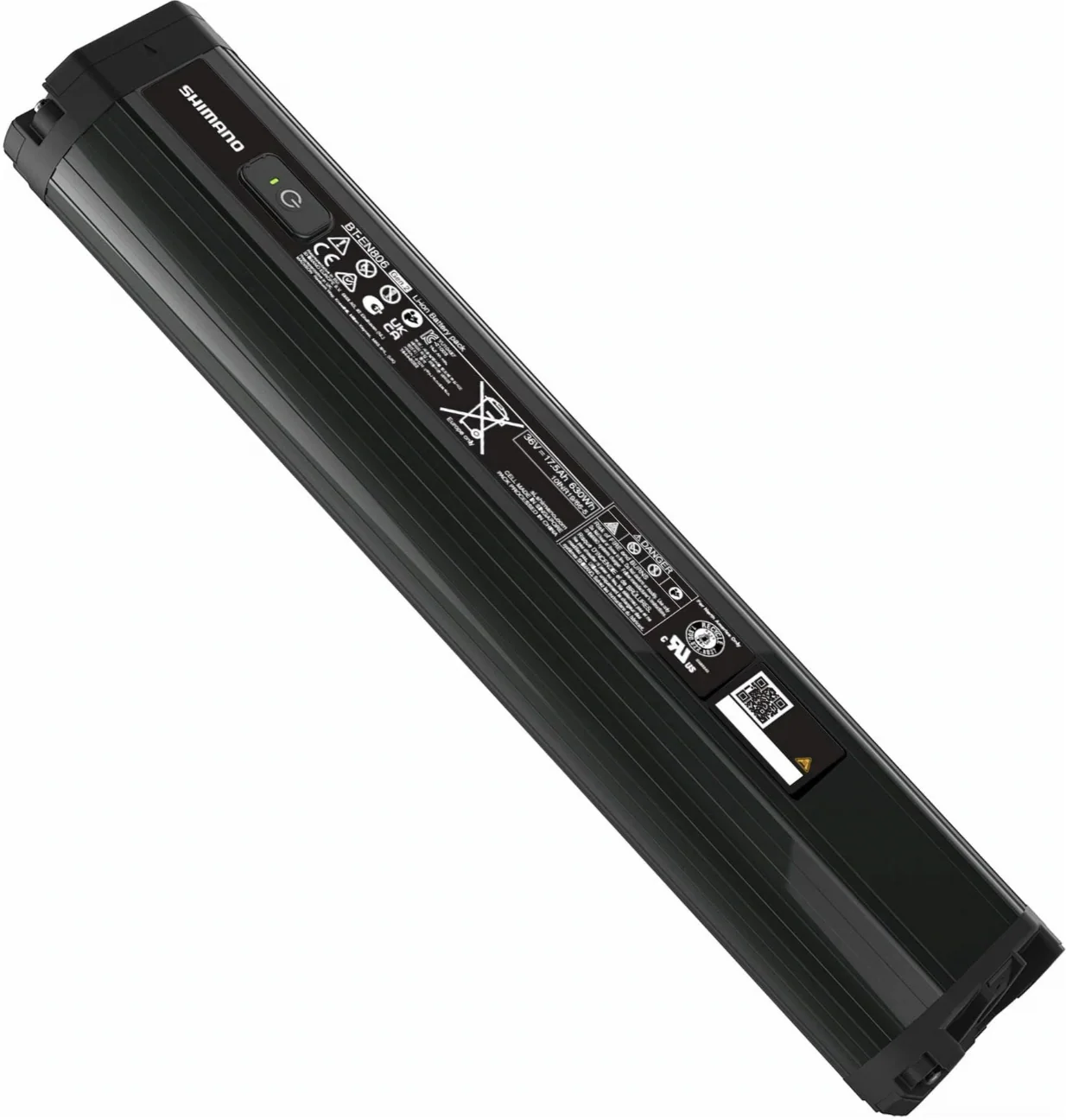

Shimano STEPS BT-EN806 630Wh Integrated Downtube Battery

The Shimano STEPS BT-EN806 630Wh is a high-capacity integrated lithium-ion battery designed for Shimano STEPS e-bike systems. With a large 630 Wh capacity (36 V / 17.5 Ah), it provides extended riding range and consistent performance for electric mountain bikes and trekking e-bikes.

This unit is brand new OEM / overstock, supplied in the original packaging and offered at a significantly reduced price compared to the original retail price. UK mainland delivery only on batteries

Designed to fit directly inside the downtube, the BT-EN806 maintains a low centre of gravity and clean frame design, helping improve bike handling and stability on the trail.

This battery features a durable construction with IPX5 water resistance, making it suitable for riding in all weather conditions and resistant to low-pressure washing.

Shimano’s advanced battery management system ensures long service life, with the battery retaining over 60 % of its original capacity even after 1,000 charge cycles, helping maintain reliable performance over years of riding.

---

Key Product Features

• Genuine Shimano STEPS BT-EN806 630Wh
• Large 630 Wh capacity (36 V / 17.5 Ah) for extended range
• Integrated downtube design for improved handling
• IPX5 water resistance for reliable all-weather riding
• Long battery lifespan with up to 1000 charge cycles
• Charge level indicator with error signal and power switch
• Secure frame mounting with locking system
• Compatible with Shimano STEPS EP801 and EP600 drive units

---

Specifications of Shimano STEPS BT-EN806 630Wh

Brand: Shimano
Model: BT-EN806
Battery Type: Lithium-Ion
Capacity: 630 Wh
Voltage: 36 V
Capacity (Ah): 17.5 Ah

Mounting Type: Integrated Downtube
Water Resistance: IPX5
Charge Time: approx. 6 hours

Compatible Drive Units:

• Shimano STEPS EP801
• Shimano STEPS EP600

Compatible Battery Mounts:

• BM-EN800-A
• BM-EN800-B
• BM-EN801-A
• BM-EN801-B

Compatible Chargers:

• EC-E6002
• EC-E8004

Operating Temperature:

• Charging: 0°C – 40°C
• Operating: -10°C – 50°C

Approximate Weight: 3.7 kg

---

Condition

• Brand new OEM / overstock stock
• Supplied in original packaging
• Clearance price significantly below RRP

RRP: £870

---

Shipping

Due to lithium battery transport restrictions, UK shipping only.
