Shimano STEPS BT-E8036 630Wh Battery – Integrated E-Bike Frame Battery (36V)

Description

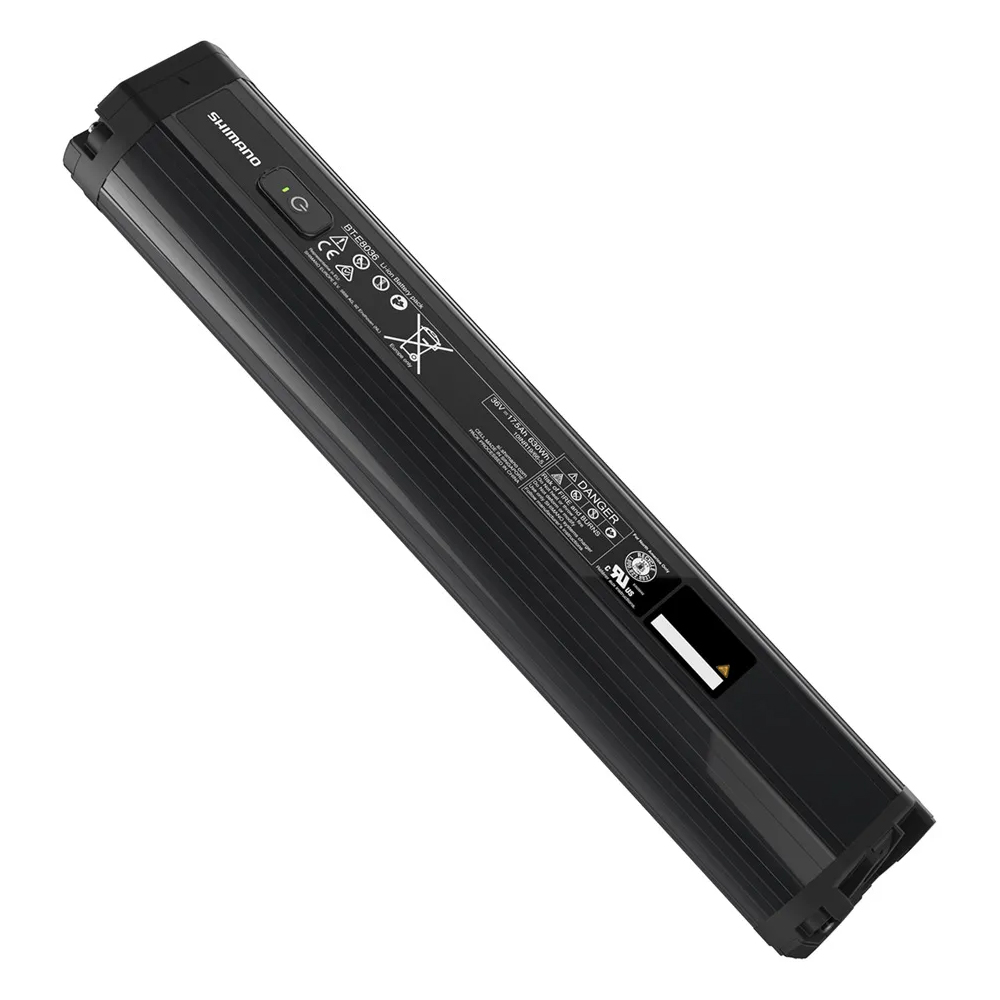

Shimano STEPS BT-E8036 630Wh Integrated Battery

The Shimano BT-E8036 630Wh battery is a high-performance integrated lithium-ion battery designed for Shimano STEPS e-bike systems. With a large 630Wh capacity (36V / 17.5Ah), it provides strong and consistent power for long rides and demanding terrain.

These units are brand new overstock batteries with 0 charge cycles, offering genuine Shimano quality at a significantly reduced price. UK MAINLAND SHIPPING ONLY ON BATTERIES.

Thanks to its integrated downtube design, the battery fits neatly inside the frame. As a result, the bike maintains a clean look while also improving weight distribution and protection from external elements.

In addition, Shimano has designed this battery for long-term durability. The internal battery management system helps protect against overcharging, deep discharge and overheating. Consequently, the battery maintains reliable performance over time.

Furthermore, the BT-E8036 is built for longevity. Even after 1,000 charge cycles, it retains around 60% of its original capacity, making it a dependable choice for regular riders.

Charging is quick and convenient. For example, the battery reaches 50% charge in approximately 2.5 hours and full charge in around 6 hours when used with a compatible Shimano charger.

Key Features:

• Genuine Shimano battery
• High capacity 630Wh (36V / 17.5Ah)
• Integrated downtube frame design
• Long lifespan with up to 1000 charge cycles
• Retains ~60% capacity after extended use
• Fast charging capability
• Built-in charge indicator and error display
• ON/OFF switch for easy operation
• Secure locking system for off-bike protection

Specifications:

Brand: Shimano
Model: BT-E8036
Battery Type: Lithium-Ion
Voltage: 36V
Capacity: 17.5Ah
Energy: 630 Wh
Weight: approx. 3.7 kg
Mounting: Integrated frame (downtube)

Charging Time:
50%: approx. 2.5 hours
100%: approx. 6 hours

Cycle Life Shimano BT-E8036 630Wh battery:
~1000 cycles (≈60% capacity remaining)

Compatible Chargers:
EC-E6000
EC-E6002
EC-E8004

Compatible Mounts:
BM-E8030-A / B
BM-E8031-A / B
