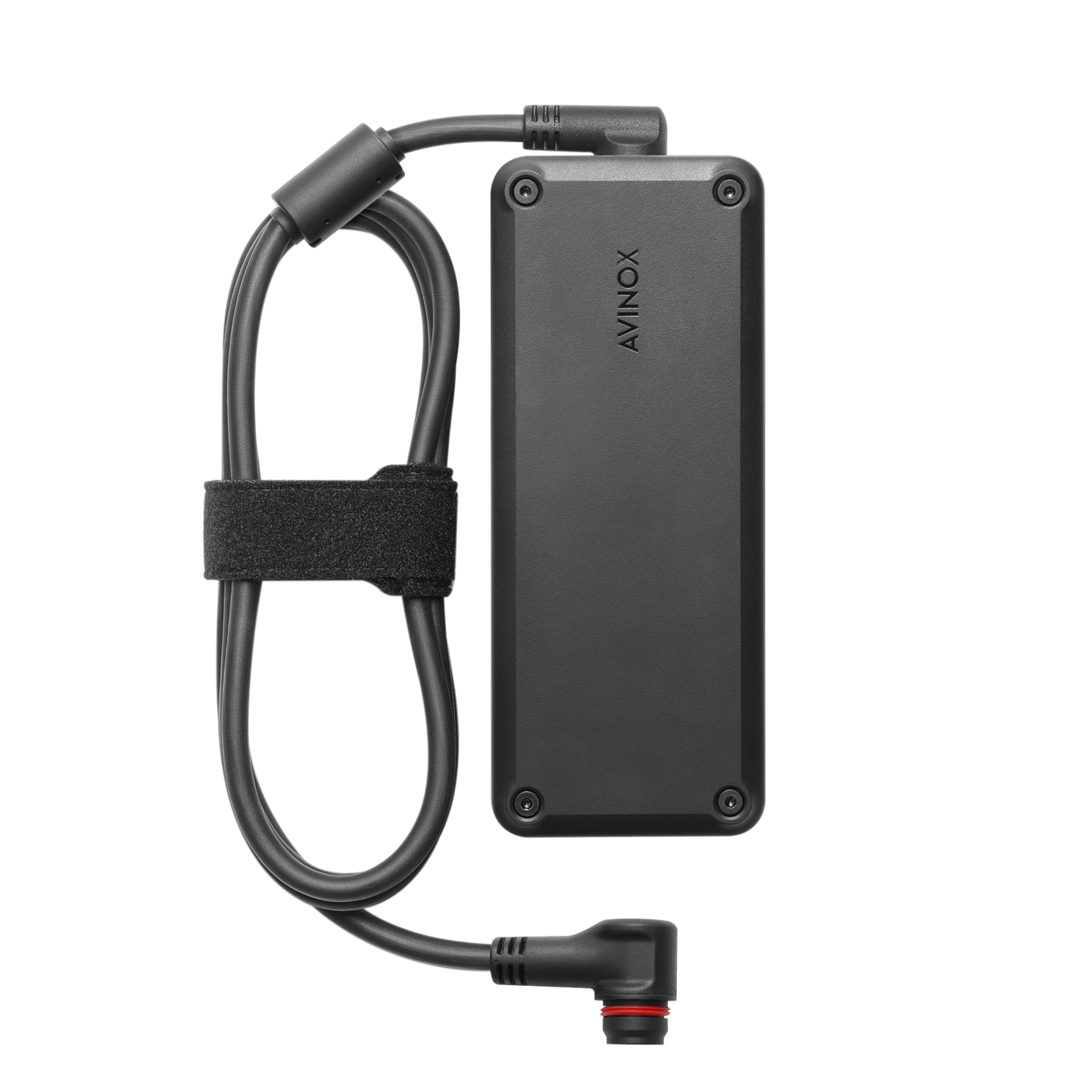

Avinox 508W 12A Fast Charger – Round Connector

Avinox 508W Fast Charger Overview

The Avinox 508W Fast Charger provides rapid charging for compatible Avinox-powered eBikes.

This is the 12A, 508W version with the round charging connector. It is brand new and unused, supplied without original packaging but still protected in film.

With up to 508W of charging power, the charger provides a much faster recharge than lower-output Avinox chargers. As a result, it is particularly useful for riders who want to reduce charging time between rides.

This charger requires a 13A kettle-style power lead, which is not included.

Avinox fast chargers are available with either a round connector or square connector. Therefore, please check the charging port on your bike carefully before ordering.

Charger Features

• Genuine Avinox fast charger
• 508W rated charging power
• Maximum charging current: 12A
• Round charging connector
• GaN fast-charging technology
• Compatible with supported Avinox-powered eBikes
• Compact charger design
• Brand new and unused
• Supplied without original packaging
• Protected in film
• 13A kettle-style power lead not included

Fast Charging

The 508W charger is designed for riders who want to spend less time waiting for their battery to recharge.

Its 12A output provides significantly more charging power than the standard lower-output Avinox charger. Therefore, compatible batteries can recover a useful amount of charge much more quickly.

For example, Avinox states that an 800Wh battery can reach approximately 75% charge in around 1.5 hours under suitable conditions.

Actual charging time will depend on the battery, its current charge level and operating conditions.

Round or Square Connector

Avinox chargers are available with two different charging connectors:

• Round connector
• Square connector

This listing is for the ROUND connector version.

Please check your bike before ordering, because the two connector types are not interchangeable.

Known applications include:

• Amflow PX Carbon – Round
• Amflow PL Carbon – Round
• Amflow PR Carbon – Square
• Mondraker Zendit – Round
• Pivot Shuttle AMP’d – Round
• Megamo Reason – Round

Because bike specifications can vary between models or production versions, checking the physical connector on your bike is the safest way to confirm compatibility.

Avinox System Compatibility

The charger is designed for compatible Avinox eBike systems using the round charging connection.

Compatible Avinox systems include:

• Avinox M1
• Avinox M2
• Avinox M2S

Compatibility still depends on the charging port fitted to the bike. Therefore, the motor or system name alone should not be used to choose between the round and square charger versions.

Specifications

• Brand: Avinox
• Product: Fast Charger
• Charger Model: CDX100-528
• Rated Power: 508W
• Maximum Charging Current: 12A
• Connector: Round
• Charging Technology: GaN
• Input Voltage: AC 90–260V
• Dimensions: 185 x 75 x 37mm
• Weight: 968 ±10g
• Compatible Systems: Avinox M1 / M2 / M2S
• AC Power Lead Included: No
• Required Power Lead: 13A kettle-style lead
• Colour: Black

Compatibility

This charger is suitable for compatible Avinox-powered eBikes fitted with the round charging port.

Before ordering:

• Check whether your bike uses the round or square connector
• Compare the charging port with the product images
• Do not assume compatibility based only on the Avinox motor model

This is especially important because Avinox produces both round-connector and square-connector versions of the 508W charger.

Scope of Delivery

• 1 x Avinox 508W 12A Fast Charger with round connector

13A kettle-style power lead is not included.

Condition

• Brand new and unused
• Small quantity available
• Supplied without original packaging
• Charger remains protected in film
