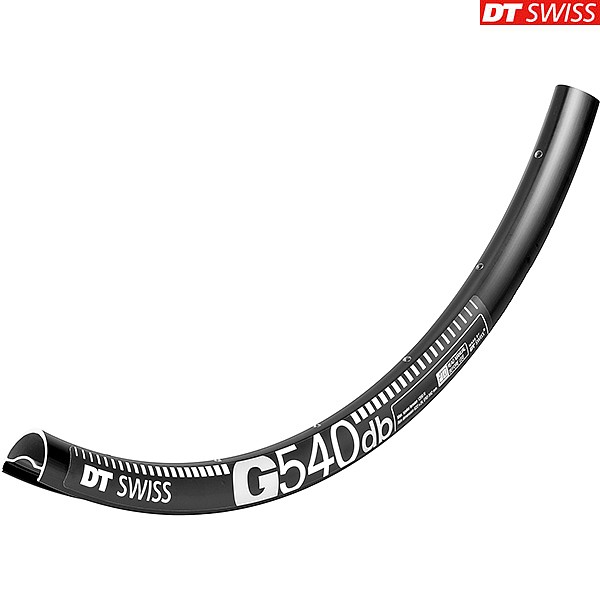

DT Swiss G 540 27.5″ Gravel Rim 28H – Black

DT Swiss G 540 27.5″ / 650B Gravel Rim with 28-hole drilling, 24mm internal width and tubeless-ready profile. Built for gravel, bikepacking and all-road use with a 130kg maximum system weight. Brand new with limited stock available.

Original price was: £44.99.Current price is: £29.99.

DT Swiss G 540 Gravel Rim Overview

The DT Swiss G 540 Gravel Rim is a strong and versatile 27.5″ / 650B aluminium rim designed for gravel, all-road and adventure riding.

Its 24mm internal width provides good support for wider gravel tyres. As a result, riders can use larger tyre volumes and lower pressures for improved grip and comfort on rough surfaces.

The G 540 also uses a robust sleeved construction and supports a maximum system weight of 130kg. Therefore, it is well suited to loaded gravel bikes, bikepacking setups and light touring.

This version has 28 spoke holes and a black finish.


Rim Features

  • 27.5″ / 650B gravel rim
  • 28-hole drilling

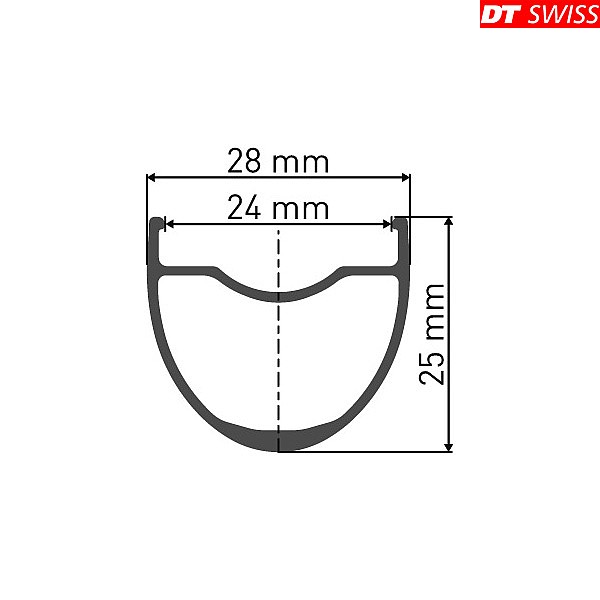

  • 24mm internal width
  • 28mm external width
  • 25mm rim height
  • Tubeless-ready profile
  • Clincher compatible
  • Sleeved aluminium construction
  • Disc brake specific
  • Presta valve drilling
  • 130kg maximum system weight
  • 554mm ERD
  • Maximum spoke tension: 1200N
  • Black finish
  • Manufacturer weight: 530g
  • Brand new with limited stock

Designed for Wider Gravel Tyres

The 24mm internal width gives wider gravel tyres better support than a traditional narrow road rim.

This helps reduce excessive tyre movement during cornering. In addition, wider tyres can generally be run at lower pressures, which can improve comfort and traction on gravel and broken surfaces.

DT Swiss lists the G 540 for wide gravel tyres up to approximately 53mm, making it suitable for a wide range of modern gravel setups.

Tubeless Ready

The G 540 uses a hooked tubeless-compatible rim profile.

Therefore, it can be used with either conventional clincher tyres and inner tubes or a suitable tubeless setup.

For tubeless use, compatible DT Swiss tubeless tape and a tubeless valve are required. These are not included with the rim.

Gravel, Touring and Bikepacking Use

The G 540 has a maximum recommended system weight of 130kg, including rider, bike and luggage.

As a result, it is a practical option for riders carrying bikepacking equipment or light touring luggage.

DT Swiss also classifies this rim as ASTM Category 2 and approves it for suitable e-bikes up to 32km/h or 250W.


Specifications

  • Brand: DT Swiss
  • Model: G 540 DB
  • Wheel Size: 27.5″ / 650B
  • ETRTO: 24-584
  • Spoke Holes: 28
  • Material: Aluminium
  • Rim Joint: Sleeved
  • Brake Type: Disc brake
  • Tyre Interface: Hooked / Crotchet Tubeless TC
  • Tubeless Ready: Yes
  • Clincher Compatible: Yes
  • Internal Width: 24mm
  • External Width: 28mm
  • Rim Height: 25mm
  • ERD: 554mm
  • Valve Type: Presta
  • Spoke Bore: Non-eyelet
  • Maximum Spoke Tension: 1200N
  • Maximum System Weight: 130kg
  • ASTM Classification: 2
  • E-Bike Approved: Yes, up to 32km/h / 250W
  • Manufacturer Weight: 530g
  • Colour: Black

Compatibility

Suitable for:

  • 27.5″ / 650B gravel wheels
  • Disc brake wheel builds
  • Gravel and all-road bikes
  • Bikepacking and light touring
  • Clincher tyres
  • Compatible tubeless tyres
  • Presta valves

The rim has 28 spoke holes, so it must be paired with a compatible 28-hole hub.


Scope of Delivery

  • 1 x DT Swiss G 540 DB 27.5″ / 650B 28H rim

Tubeless tape, valve, spokes and nipples are not included.


Condition

  • Brand new
  • Limited stock available
