SKU: DT SWISS G 1800 SPLINE WHEEL Category: Wheels Brand: DT Swiss

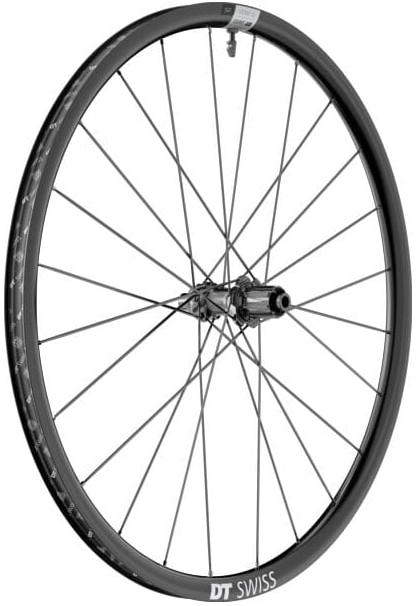

DT Swiss G 1800 SPLINE disc brake wheel, 700C 25x24mm, rear

DT Swiss G 1800 Rear Wheel for 700c gravel bikes. Features a 24mm internal aluminium rim, 12x142mm thru-axle fitment, Center Lock interface and Shimano Road HG-L freehub. Brand new stock in its original box.

Original price was: £259.99.Current price is: £189.99.

Description

DT Swiss G 1800 Rear Wheel Overview

The DT Swiss G 1800 Rear Wheel is a 700c gravel wheel built for everyday adventures, bikepacking and mixed-surface riding. It is brand new and supplied in its original box. This listing is for the rear wheel only.

The wheel uses a Shimano Road HG-L freehub body, also identified as ASF11. Therefore, it suits compatible Shimano and SRAM HG road cassettes. It also has a standard 12x142mm rear thru-axle fitment and a Center Lock brake interface.

The aluminium rim measures 24mm internally and 25mm high. As a result, it gives modern gravel tyres a stable base. It also supports both tubeless and standard clincher setups.

In addition, the DT Swiss 370 Straightpull hub uses an 18-tooth Ratchet LN freehub system. This design offers reliable engagement and simple servicing. Therefore, the wheel is well suited to regular use in poor weather and demanding conditions.

DT Swiss G 1800 Rear Wheel Features

Genuine DT Swiss G 1800 SPLINE 25 rear wheel
Designed for gravel riding and bikepacking
700c / 622mm wheel size
25mm aluminium rim height
24mm internal rim width
28mm external rim width
Hooked Tubeless Ready rim
DT Swiss 370 Straightpull rear hub
18-tooth Ratchet LN freehub system
Shimano Road HG-L / ASF11 freehub body
12x142mm thru-axle fitment
Center Lock disc brake interface
DT Aero Comp Wide Straightpull spokes
DT Pro Lock Squorx aluminium nipples
Maximum recommended system weight of 130kg

DT Swiss G 1800 Rear Wheel Performance & Use

The DT Swiss G 1800 Rear Wheel is designed for riders who move between tarmac, gravel tracks and rough country roads.

Because the rim has a 24mm internal width, it provides stable support for wider gravel tyres. Therefore, compatible tyres can keep a better shape during cornering and braking.

The wider rim also allows suitable tyres to run at lower pressures. As a result, riders can gain more grip and comfort on loose or uneven ground.

In addition, the rim is Tubeless Ready. A compatible tubeless setup can help reduce pinch flats. However, the hooked rim can also be used with standard clincher tyres and inner tubes.

The 370 rear hub uses DT Swiss’s Ratchet LN system. Two toothed ratchets engage across a broad contact area. Therefore, the system offers dependable power transfer and long-term serviceability.

Furthermore, the Straightpull hub supports direct spoke alignment. DT Aero Comp Wide spokes also help balance stiffness and comfort. As a result, the wheel suits long rides, daily gravel use and loaded bikepacking trips.

Key Features

700c gravel rear wheel
24mm internal rim width
25mm rim height
DT Swiss 370 rear hub
18-tooth Ratchet LN system
Shimano Road HG-L freehub
ASF11 freehub body
12x142mm rear spacing
Center Lock rotor fitment
Tubeless Ready construction
130kg system-weight limit

Specifications

Brand: DT Swiss
Series: G 1800 SPLINE
Model: G 1800 SPLINE 25
Wheel Position: Rear
Intended Use: Gravel / All-Road / Bikepacking
Wheel Size: 700c / 28″
ETRTO: 24-622
Rim Material: Aluminium
Rim Joint: Sleeved
Rim Type: Hooked / Crotchet Tubeless
Tubeless Ready: Yes
Rim Height: 25mm
Internal Rim Width: 24mm
External Rim Width: 28mm
Hub: DT Swiss 370
Hub Design: Straightpull
Freehub System: Ratchet LN 18
Ratchet Teeth: 18
Axle Standard: 12x142mm thru axle
Freehub Interface: Shimano Road HG-L
Freehub Body Code: ASF11
Cassette Compatibility: Compatible Shimano and SRAM HG road cassettes
Brake Interface: Center Lock / AFS
Spokes: DT Aero Comp Wide Straightpull
Spoke Count: 24
Nipples: DT Pro Lock Squorx ProHead aluminium
Valve Type: Presta
Maximum Recommended System Weight: 130kg
Weight: Approx. 994g
Colour: Black

Cassette Compatibility

Shimano Road HG-L freehub body
Suitable for compatible Shimano HG road cassettes
Suitable for compatible SRAM HG road cassettes
Supports compatible 8, 9, 10, 11 and 12-speed systems
Some cassette setups may require the correct spacer
Not compatible with SRAM XDR cassettes
Not compatible with Shimano Micro Spline cassettes

Tyre Compatibility

Suitable for compatible 700c gravel tyres
Tubeless Ready with suitable tape, valve, sealant and tyre
Can also be used with clincher tyres and inner tubes
Hooked rim supports conventional tyre beads
Always follow tyre and rim pressure limits

Compatibility

Designed for frames using 12x142mm rear spacing
Compatible with Center Lock disc rotors
Alternative axle standards may require separate adapters
Check the frame, axle, cassette and rotor standards before ordering
Front wheel not included

Scope of Delivery

1 x DT Swiss G 1800 SPLINE 25 rear wheel

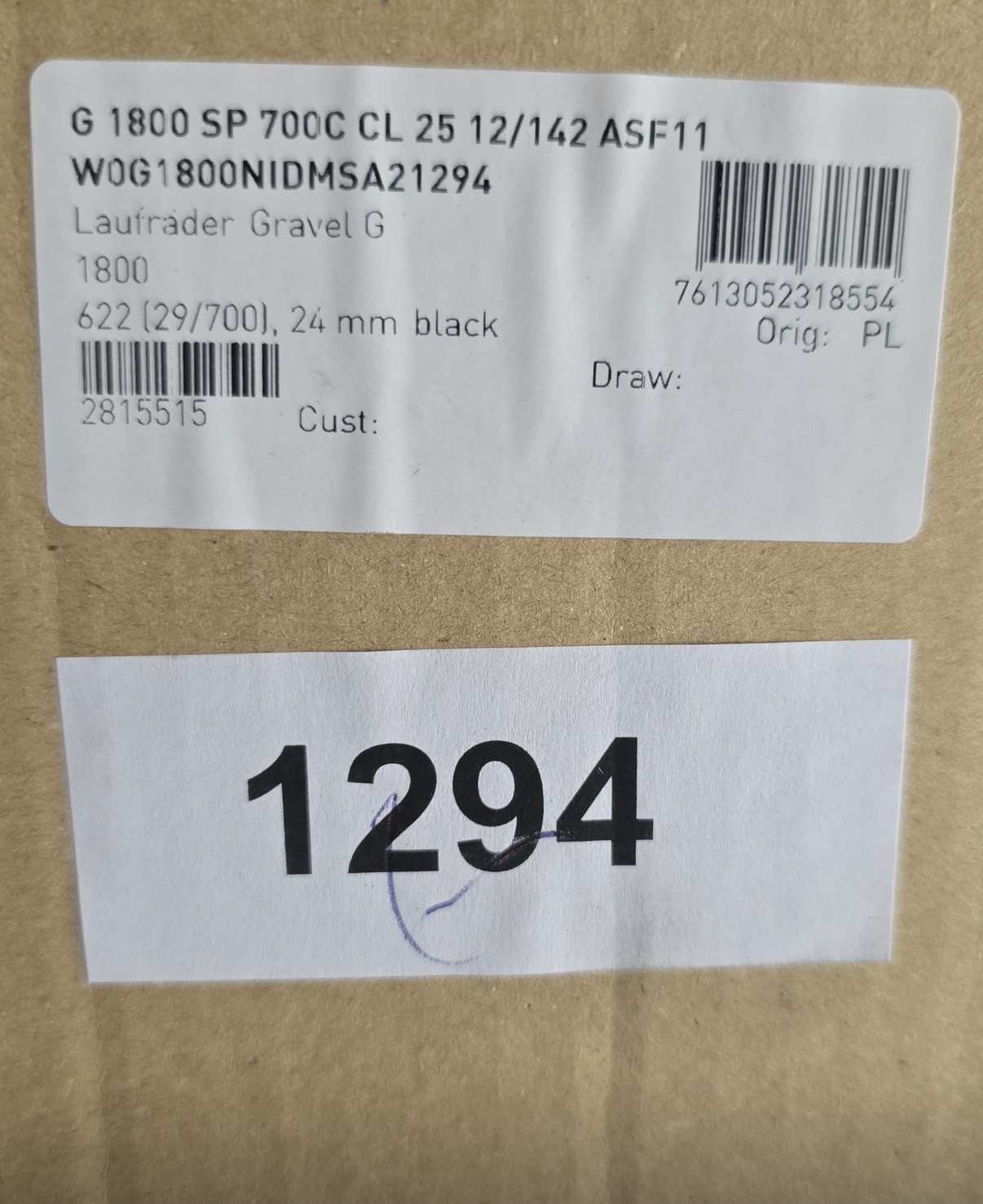

Supplied in the original box
Front wheel not included
Cassette not included
Brake rotor not included
Thru axle not included
Tubeless rim tape and valves are included when purchased as a confirmed pair

Condition

Brand new stock
New and unused
Supplied in original packaging
Rear wheel only
Matching front wheel listed separately here

Why Choose This Product

Strong long-term spare-parts support
Genuine DT Swiss gravel rear wheel
Wide rim supports modern gravel tyres
Reliable Ratchet LN freehub system
Service-friendly DT Swiss 370 hub
Tubeless Ready construction
Common 12x142mm rear fitment
Center Lock brake compatibility
Suitable for gravel riding and bikepacking
