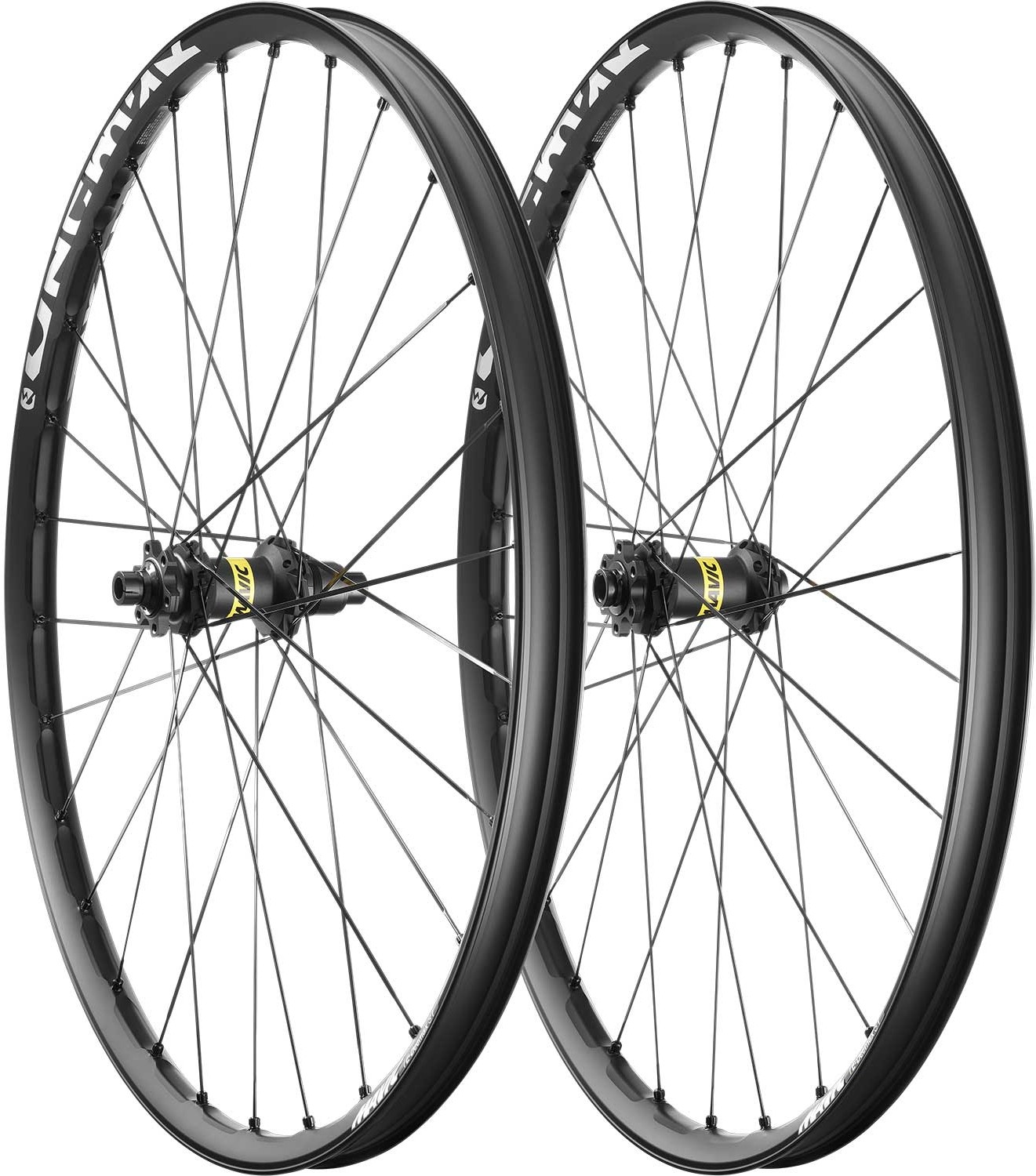

Mavic E-Deemax S 29 Centre Lock Boost XD Wheelset

Description

Mavic E-Deemax S 29 Wheelset Overview

The Mavic E-Deemax S 29 Wheelset is purpose-built for demanding off-road E-bike use. This is brand new clearance stock with 29″ rims, 15x110mm front and 12x148mm rear Boost spacing, Centre Lock rotor fitment and a SRAM XD freehub.

The 30mm internal rim width adds stiffness and cornering precision. In addition, Mavic’s PFP sidewall design helps reduce the risk of tyre cuts and pinch flats on rough terrain.

Fore tubeless technology keeps the upper rim bridge intact and fully sealed. Therefore, the rim does not require conventional tubeless rim tape. This construction also improves stiffness and makes tubeless tyre fitting easier.

---

Product Features

• Designed specifically for off-road E-MTB use
• 29″ wheel size
• 15x110mm Boost front hub
• 12x148mm Boost rear hub
• SRAM XD freehub
• Centre Lock disc brake fitment
• 30mm internal rim width
• 22mm rim profile
• 28-spoke construction
• UST Tubeless Ready
• Fore tapeless tubeless technology
• PFP Pinch Flat Protection
• Instant Drive 360 freehub system
• QRM Auto bearing preload
• Black Shield rim protection
• Maximum system weight of 180kg
• ASTM Category 5

---

E-MTB Performance and Protection

The E-Deemax S was engineered to handle the additional loads generated by modern E-MTBs. Its wide 30mm rim provides a stable tyre platform while also increasing lateral stiffness.

As a result, riders can use lower tyre pressures for improved traction and smoother rolling over rough ground. Meanwhile, the 28 threaded, three-cross spokes help the wheels cope with the additional torque produced by an E-bike motor.

Mavic’s PFP, or Pinch Flat Protection, increases the contact area at the top of the rim sidewall. Consequently, it reduces the risk of tyre cuts and pinch punctures when riding through rocks or other hard impacts.

The wheelset carries an ASTM Category 5 rating. Therefore, it is designed for demanding off-road riding with a strong focus on descending.

---

Mavic Technologies

• Maxtal Aluminium Alloy – Mavic’s aluminium alloy combines high strength with low weight.
• ISM Light Rim Technology – Inter Spoke Milling removes material from low-stress areas of the rim. As a result, weight is reduced without sacrificing the required strength.
• Fore Tapeless Tubeless Technology – The upper rim bridge remains intact rather than being drilled for conventional spoke nipples. This creates a sealed, stiff tubeless rim bed.
• Instant Drive 360 – Mavic’s double-ratchet freehub system provides quick engagement and efficient power transfer.
• UST Tubeless Technology – Designed to improve traction, comfort and control while reducing the risk of flats.
• PFP Sidewall – Pinch Flat Protection is designed to reduce the risk of tyre cuts and punctures on hard impacts.
• SUP Welding – The rim joint is arc welded and then machined smooth for a strong, clean connection.
• Black Shield Treatment – A protective rim treatment designed to improve resistance to stone impacts and scratches.
• Infinity Hub Design – Optimised spoke lacing and tension distribution support efficient power transfer and long-term reliability.
• QRM Auto – Double-sealed cartridge bearings automatically maintain the correct bearing preload for smooth running without play.

---

Specifications

• Brand: Mavic
• Model: E-DEEMAX S 30 29
• Wheel Size: 29″
• ETRTO: 622x30TC
• Rim Material: Maxtal aluminium
• Rim Height: 22mm
• Internal Rim Width: 30mm
• Front Axle: 15x110mm Boost
• Rear Axle: 12x148mm Boost
• Brake Interface: Centre Lock
• Freehub: SRAM XD
• Freehub Technology: Instant Drive 360
• Spoke Count: 28 front / 28 rear
• Spoke Type: Straight-pull, extra-flat, butted and anti-rotation
• Lacing: Three-cross
• Nipples: Black brass
• Tubeless: UST Tubeless Ready
• Rim Technology: Fore tapeless
• Bearings: QRM Auto sealed cartridge
• ASTM Classification: Category 5
• Maximum System Weight: 180kg including bike
• Pair Weight: 2008g
• Front Weight: 912g
• Rear Weight: 1096g

---

Compatibility

• 29″ mountain bikes and E-MTBs
• Front forks using 15x110mm Boost spacing
• Frames using 12x148mm Boost rear spacing
• Centre Lock disc brake rotors
• SRAM XD-compatible MTB cassettes

Please check your wheel size, axle standards, brake interface and cassette fitment before ordering.

---

Scope of Delivery

• 1 x Mavic E-Deemax S 29 front wheel
• 1 x Mavic E-Deemax S 29 rear wheel
• UST tubeless valves
• Replacement spokes
• Mavic adjustment accessories

---

Condition

• Brand new stock
• Clearance stock
