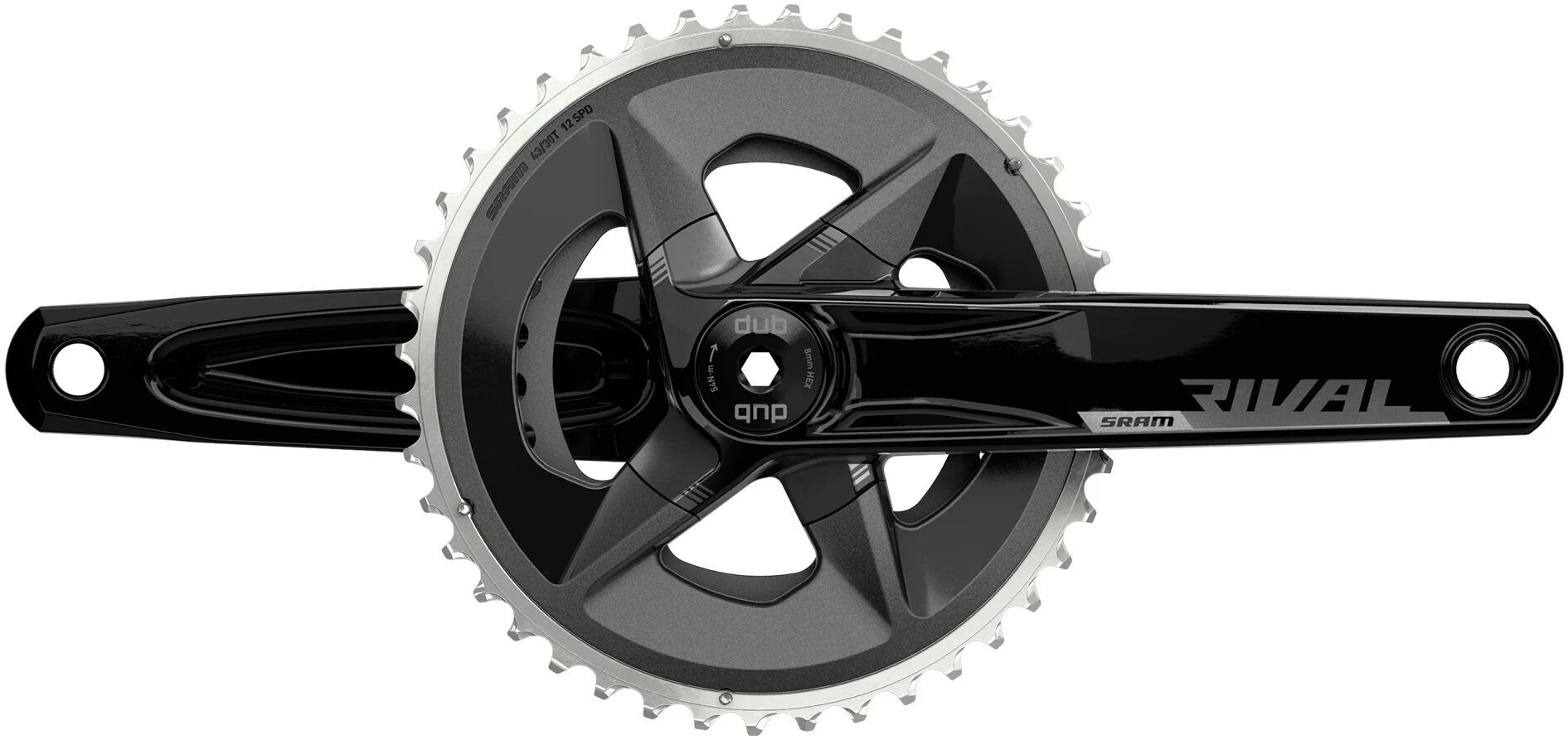

SRAM Rival AXS D1 DUB Crankset 46/33T 175mm

SRAM Rival AXS D1 DUB Crankset Overview

The SRAM Rival AXS D1 DUB Crankset combines 175mm aluminium crank arms with a 46/33T chainring setup for modern SRAM 2×12-speed road drivetrains.

SRAM uses a consistent 13-tooth difference between the chainrings. As a result, front shifts remain quick and predictable while X-Range gearing provides a broad range of usable gears.

The crankset also uses SRAM’s DUB spindle system. Therefore, it can work across a wide range of frame standards when paired with the correct compatible DUB bottom bracket.

Features

• SRAM Rival AXS D1 road crankset
• 2×12-speed drivetrain
• 175mm crank arm length
• 46/33T chainring combination
• 13-tooth difference between chainrings
• X-Range™ gearing technology
• DUB™ spindle interface
• 45mm chainline
• 107 BCD
• Aluminium crank arms
• Aluminium chainrings
• Crisp and accurate front shifting
• Compatible with SRAM Road Flattop chains

X-Range™ Gearing

X-Range changes the traditional approach to road gearing by combining smaller front chainrings with wider-range cassettes. The 46/33T combination keeps a consistent 13-tooth difference between the two chainrings.

As a result, front shifting remains predictable while the complete drivetrain provides a wide spread of gears. In addition, the smaller chainrings help create smoother progression across the drivetrain.

DUB™ Technology

DUB focuses on the relationship between the crank spindle, bottom bracket bearings and frame interface. SRAM uses a 28.99mm spindle to balance stiffness, durability and broad compatibility.

Therefore, the crankset can work with several frame standards when installed with the correct SRAM Road DUB bottom bracket for the bike.

Specifications

• Brand: SRAM
• Series: Rival AXS
• Generation: D1
• Model ID: FC-RIV-D1
• Drivetrain: 2×12-speed
• Crank Arm Length: 175mm
• Chainring Size: 46/33T
• Front Tooth Difference: 13T
• Chainline: 45mm
• BB Spindle Interface: DUB
• Spindle Diameter: 28.99mm
• Bolt Circle Diameter: 107 BCD
• Chainring Material: Aluminium
• Crank Arm Material: Aluminium
• Chainring Offset: 0mm
• Chain Compatibility: SRAM Road Flattop
• Colour: Black

Compatibility

The SRAM Rival AXS D1 DUB Crankset is designed for compatible SRAM AXS 2×12-speed road drivetrains.

Key compatibility points include:

• SRAM 12-speed road drivetrain
• SRAM Road Flattop chain
• Compatible SRAM AXS front derailleur
• Compatible SRAM Road DUB bottom bracket
• Standard 45mm road chainline

The required DUB bottom bracket depends on the bike’s frame standard. Therefore, check the frame specification before selecting the correct bottom bracket.

This is the standard 45mm chainline version, rather than the wider Rival AXS Wide crankset.
