Shimano STEPS EP6 DU-EP600 Motor 250W 85Nm drive unit

Description

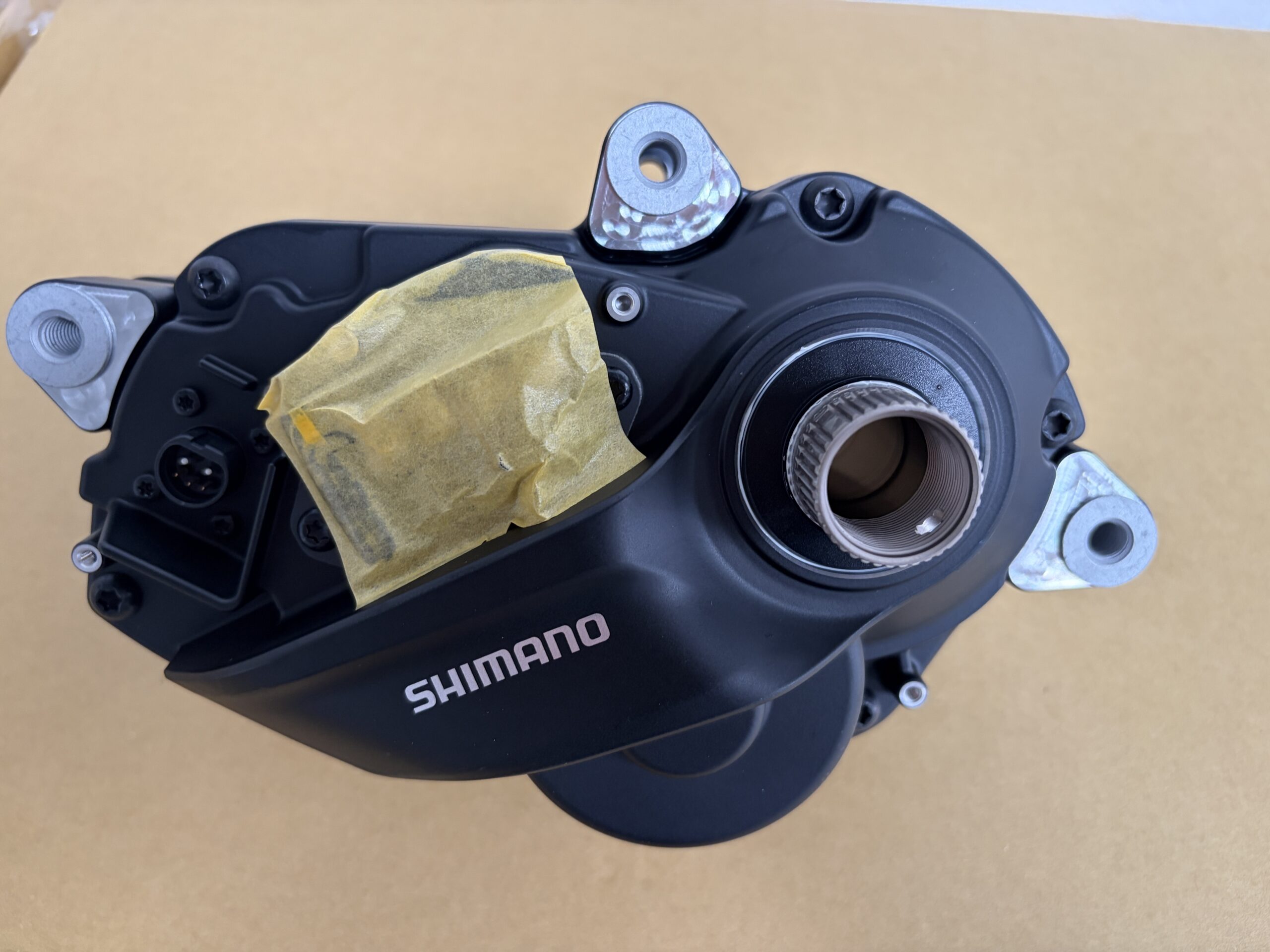

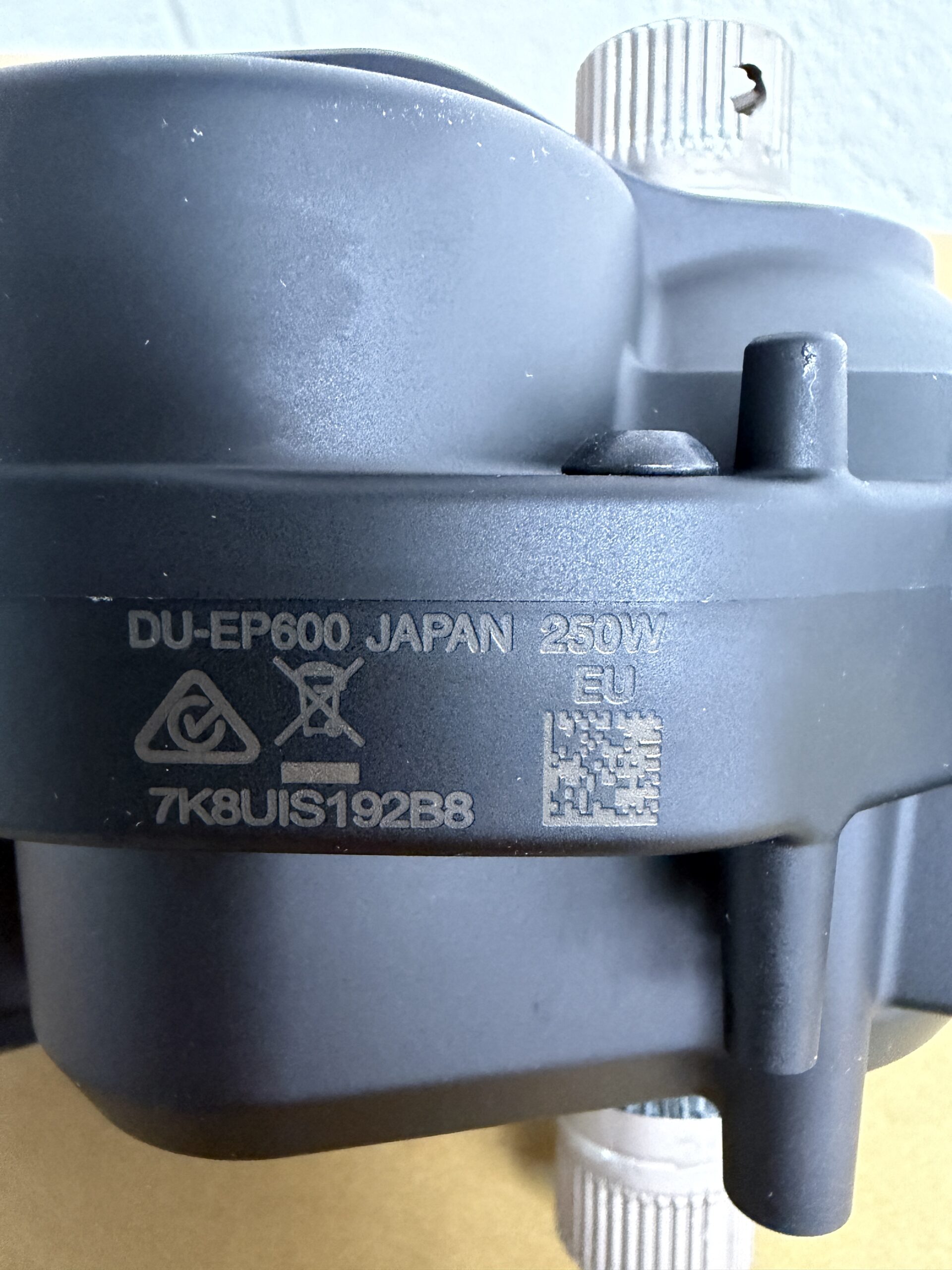

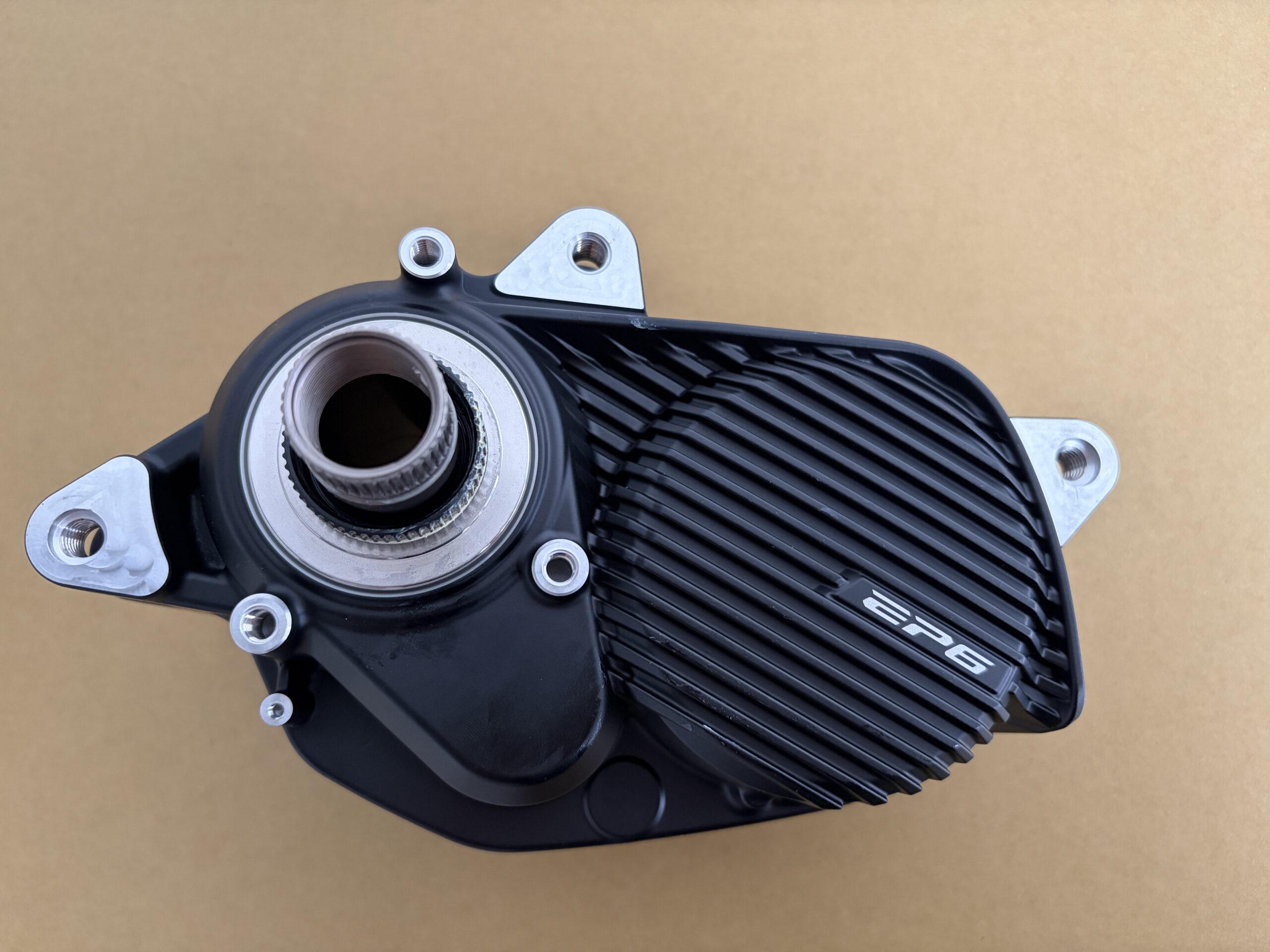

Shimano EP6 DU-EP600 Motor Overview

The Shimano EP6 DU-EP600 Motor is a 250W mid-drive unit designed to deliver natural and responsive e-bike assistance with up to 85Nm of torque. It supports assistance up to 25km/h and combines strong off-road performance with expanded system connectivity.

This motor is supplied without original packaging and remains in its factory settings. Depending on the bike’s existing configuration, it may work plug-and-play. However, programming is likely to be required before use.

A Shimano dealer can configure the motor to the bike’s specification. Alternatively, specialist services such as STUnlocker may allow configuration at home.

Shimano developed the EP6 to offer performance comparable to the EP8 at a more accessible price point. At the same time, it retains the same 85Nm maximum torque for demanding climbs and technical riding.

---

Product Features

• Shimano STEPS EP6 DU-EP600 drive unit
• 250W rated continuous power
• Up to 85Nm maximum torque
• Assistance up to 25km/h
• Approx. 3.0kg weight
• Lightweight aluminium body
• Natural and refined pedal assistance
• CAN and ACC connectivity
• Compatible with Shimano second-generation battery management
• E-TUBE PROJECT Cyclist Fine Tune support
• FREE SHIFT and AUTO SHIFT support with compatible DEORE XT Di2 systems
• Eco, Trail and Boost riding modes
• Walk assist
• Suitable for e-MTB and wider e-bike applications

---

Performance and Connectivity

The EP6 uses intelligent sensors to deliver smooth assistance that responds naturally to rider input. Therefore, it works well on technical climbs, flowing trails and everyday riding.

Its 85Nm maximum torque provides strong support when gradients increase. Meanwhile, the motor remains compact and relatively light at around 3.0kg.

In addition, Shimano added CAN and ACC connections to expand system integration. The motor also works with Shimano’s second-generation battery management system.

With compatible DEORE XT Di2 components, the EP6 can support FREE SHIFT and AUTO SHIFT functions. As a result, the drivetrain can offer more advanced electronic shifting options.

Riders can also customise assistance through the E-TUBE PROJECT Cyclist app. Fine Tune mode provides additional control over the motor’s support characteristics.

---

Specifications

• Brand: Shimano
• Series: EP6
• Model: DU-EP600
• Motor Type: Brushless mid-drive motor
• Rated Continuous Power: 250W
• Maximum Torque: 85Nm
• Rated Voltage: 36V DC
• Maximum Assistance Speed: 25km/h
• Weight: Approx. 3.0kg
• Battery Management System: Second generation
• Communication: E-TUBE
• Connectivity: CAN / ACC
• Fine Tune Mode: Yes
• Di2 Compatible: Yes
• FREE SHIFT Compatible: Yes, with suitable Di2 setup
• AUTO SHIFT Compatible: Yes, with suitable Di2 setup
• Ride Modes: Eco / Trail / Boost
• Walk Assist: Yes
• Compatible Axle Type: 24mm narrow
• Drive Unit Mounting Bolts: 6

---

Compatibility

• Shimano E-BIKE SYSTEMS using the second-generation battery management system
• Compatible Shimano SD300-based system components
• Compatible DEORE XT Di2 configurations
• Suitable for bikes designed around the DU-EP600 drive unit

This motor should not be purchased based on torque or mounting shape alone. Please confirm that your bike is designed for the DU-EP600 and second-generation Shimano system before ordering.

---

Programming Requirements

The motor is supplied in factory settings.
In some cases, the existing bike configuration may allow plug-and-play installation. However, programming will usually be required to match the original bicycle specification.
Programming can be completed by a Shimano dealer or through a suitable specialist service such as STUnlocker.

---

Scope of Delivery

• 1 x Shimano STEPS EP6 DU-EP600 250W / 85Nm drive unit

---

Condition

• Supplied without original packaging
• Factory software settings
