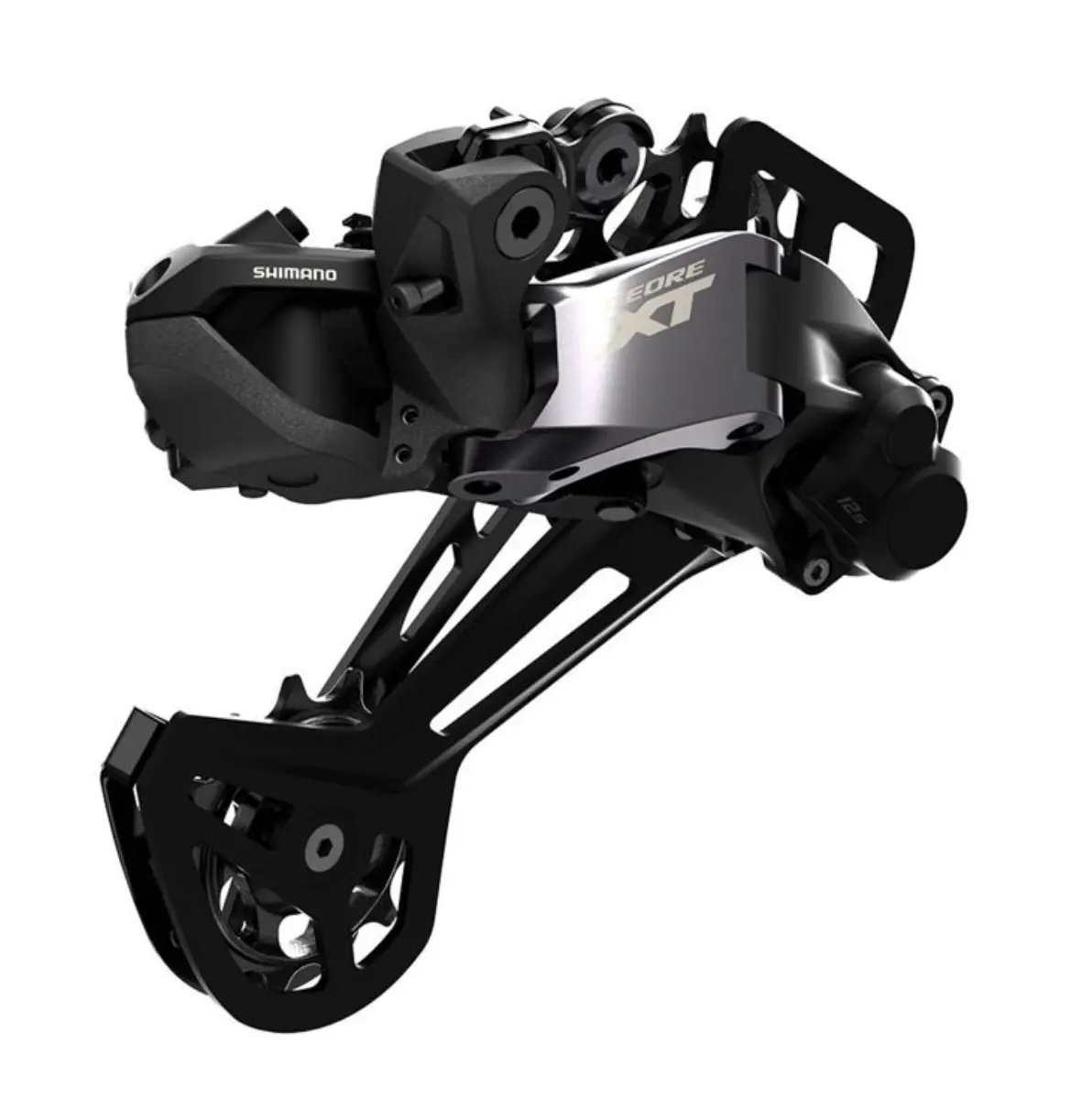

Shimano Deore XT RD-M8150 Di2 12-Speed Rear Derailleur

Shimano Deore XT RD-M8150 Overview

The Shimano Deore XT RD-M8150 is a 12-speed Di2 rear derailleur made for compatible Shimano E-Bike and E-MTB systems.
This is brand new, unused OEM stock supplied without original packaging. Rear derailleur only.

The derailleur connects to the Shimano E-Bike system with an EW-SD300 cable. It also takes power directly from the bike’s main battery, so there is no separate derailleur battery to charge.

In addition, Shimano combines Di2 shifting with HYPERGLIDE+ to give fast and smooth gear changes. This is especially useful on E-Bikes, where the drivetrain can be under higher load.

RD-M8150 Features

• 12-speed Shimano Deore XT Di2 rear derailleur
• Designed specifically for compatible Shimano E-Bikes
• FREE SHIFT support on compatible systems
• Fast and precise electronic shifting
• Smooth shifting under higher E-Bike drivetrain loads
• HYPERGLIDE+ drivetrain compatibility
• SHIMANO SHADOW RD+ chain stabilisation
• Compatible with 10-51T 12-speed cassettes
• Direct power from the main Shimano E-Bike battery
• EW-SD300 E-TUBE connection
• Low-profile derailleur design
• E-TUBE PROJECT customisation and diagnostics
• 375g manufacturer weight

FREE SHIFT

FREE SHIFT lets the rider change gear while coasting on a compatible Shimano E-Bike system.
For example, you can select a lower gear before reaching a climb or exiting a corner. As a result, the bike can already be in the right gear when you start pedalling again.

Because the derailleur works with the Shimano E-Bike system, this shift can take place without normal pedalling input.

Shifting Performance

Electronic Di2 operation provides fast and consistent shift commands without a traditional mechanical shift cable.
In addition, Shimano designed the RD-M8150 to shift smoothly under the heavier chain loads produced by E-Bike motors.

SHIMANO SHADOW RD+ also helps control chain movement over rough terrain.
Consequently, the drivetrain runs more quietly while reducing chain slap and the risk of chain drop.

Specifications

• Brand: Shimano
• Series: Deore XT
• Model: RD-M8150-12
• Cage: SGS
• Product Type: Di2 rear derailleur
• Application: E-Bike / E-MTB
• Rear Speeds: 12-speed
• Chain Compatibility: Shimano HG 12-speed
• Cassette Range: 10-51T
• Top Sprocket: 10T
• Low Sprocket: 51T
• Total Capacity: 41T
• Maximum Front Difference: 0T
• Mount: Conventional direct attachment
• Rear Derailleur Technology: SHIMANO SHADOW RD+
• Fluoric-Coated Link Bushings: 3
• Pulley: 13T
• Guide Pulley Bearing: Sealed bearing
• Tension Pulley Bearing: Sealed bearing
• Electric Wire: EW-SD300
• SD300 Ports: 1
• Power Supply: Shimano E-Bike system battery
• Manufacturer Weight: 375g
• Colour: Series colour

Compatibility

The Shimano Deore XT RD-M8150 is designed for compatible Shimano E-Bike systems.

Key requirements include:

• Shimano E-Bike system integration
• 12-speed HYPERGLIDE+ drivetrain
• 10-51T cassette
• Shimano HG 12-speed chain
• EW-SD300 E-TUBE wiring
• Compatible Shimano Di2 shift switch

It can be paired with compatible controls such as the Shimano SW-M8150-R.

Compatible EP600 and EP801 system configurations can also support FREE SHIFT functionality.

This is not a standalone wireless Di2 derailleur for conventional non-electric mountain bikes. It requires a compatible Shimano E-Bike system for power and operation.

Scope of Delivery

• 1 x Shimano Deore XT RD-M8150-12 Di2 rear derailleur

Condition

• Brand new and unused OEM stock
• Supplied without original packaging
