Bosch Purion 200 Display BRC3800 – Smart System eBike Display

Description

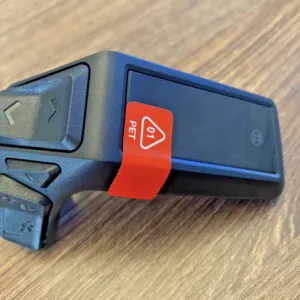

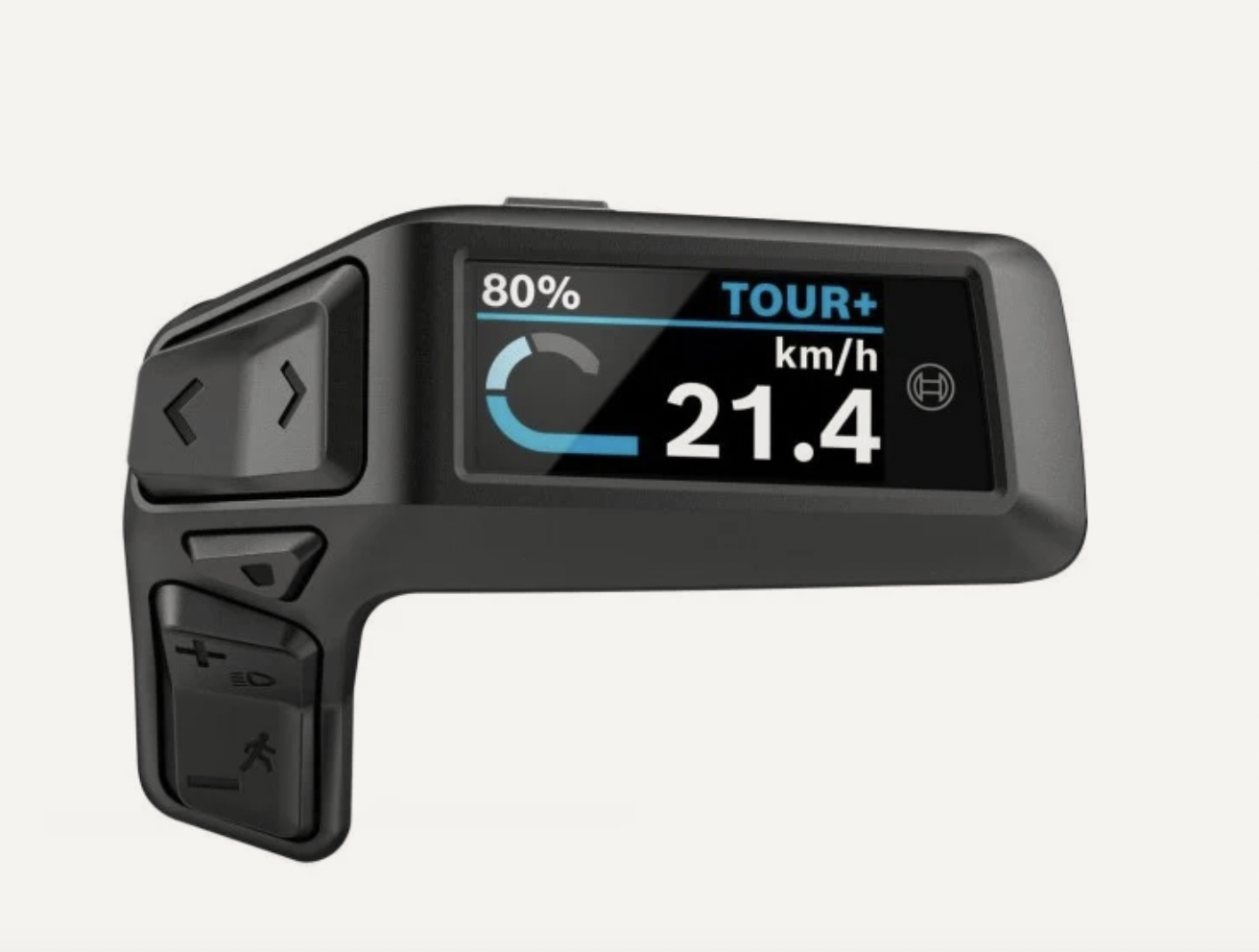

Bosch Purion 200 Display for Smart System

The Bosch Purion 200 display is a compact, all-in-one control unit and display designed for Bosch Smart System eBikes. It combines a clear 1.6″ colour screen with intuitive controls, allowing you to monitor ride data and manage assistance levels easily.
Because of its integrated design, it keeps your cockpit clean while still providing all essential ride information at a glance.

This item is brand new OEM stock, fully unused and supplied without original packaging.

---

Compact Smart System eBike Display

Display features a high-resolution TFT screen and simple navigation.

• 1.6″ colour TFT display (320 × 160 pixels)
• Clear visibility in all light conditions
• Displays speed, distance, battery level and support mode
• Ambient light sensor adjusts brightness automatically

In addition, the ergonomic button layout allows quick and safe control while riding.

---

Smart Connectivity and Integration

The Bosch Purion 200 display is fully integrated into the Bosch Smart System.

• Connects with Bosch eBike Flow app
• Supports updates and ride tracking
• Bluetooth connectivity for extended features

Because of this, it acts as both a display and control interface for your entire eBike system.

---

Compatibility

This display is ONLY compatible with Bosch Smart System (2022+)

• Compatible with bikes using LED Remote
• Not compatible with older Bosch systems

---

Key Features of Bosch Purion 200 display

• 1.6″ TFT colour display
• All-in-one display and control unit
• Bluetooth connectivity
• USB-C diagnostic interface
• Internal 75 mAh rechargeable battery
• Compact and ergonomic design

---

Specifications

• Bosch Part Number: EB1320003V
• Display: 1.6″ TFT (320 × 160 px)
• Battery: 75 mAh Li-ion (charged via eBike)
• Connectivity: Bluetooth
• Interface: USB-C (diagnostic only)
• Dimensions: 86 × 65 × 53 mm
• System: Bosch Smart System
• Handlebar clamp: 22.2 mm

---

Included

• display (22.2 mm handlebar)
• Rubber shim for clamp and battery housing
• Captive mounting screw

---

Condition

• Brand new OEM stock
• Unused
• No original packaging
• Full working order

---

Why Choose Bosch Purion 200 Display

• Clean cockpit with integrated design
• Simple and intuitive controls
• Smart System compatibility
• Reliable Bosch performance
